Models | JPL-1000w | JPL-1500w | JPL-2000w | ||
Power | 1000W | 1500w | 2000w | ||
Laser Source | RECI/RAYCUS/BWT/MAX/IPG | ||||
Laser wavelength | 1080 + -5nm | ||||
Lifespan of Fiber Laser Source | Max. 100 000H | ||||
Output Power of Laser | 5-95% Adjustable | ||||
Scanning Speed | ≦8000mm | ||||
Welding Speed | 1-120mm/s | ||||
System Operation Environment | 15~40 ℃ ( 10-70%) / Flat, no vibration and shock | ||||
cooling method | Water cooling | ||||
Cooling water | 5-45°C | ||||
Controller | Touch panel control system | ||||
Fiber Cable length | 10M | ||||
Total Power Consumption | 6.5kw | 7.5kw | 10kw | ||
Power Input | AC220V/50Hz/1P | AC380V/50Hz/3P | |||
Scan Width - Welding | (Standard) 0~6mm | ||||
Scan Width - Cleaning | F150-0~15mm | ||||
Dimension (L*W*H) | 141*61*105cm | ||||
Gross Weight | 160 KG | ||||
Maximum support air pressure | 10 Bar | ||||
Focus vertical adjustment range | ±10mm | ||||
Supported Languages | |||||
Chinese | English | Korean | Russian | German | Japanese |
French | Italian | spanish | Portuguese | Greek | Turkish |
Czech | Slovak | Polish | Thai | Romanian | Vietnamese |
Jiangpin Technology

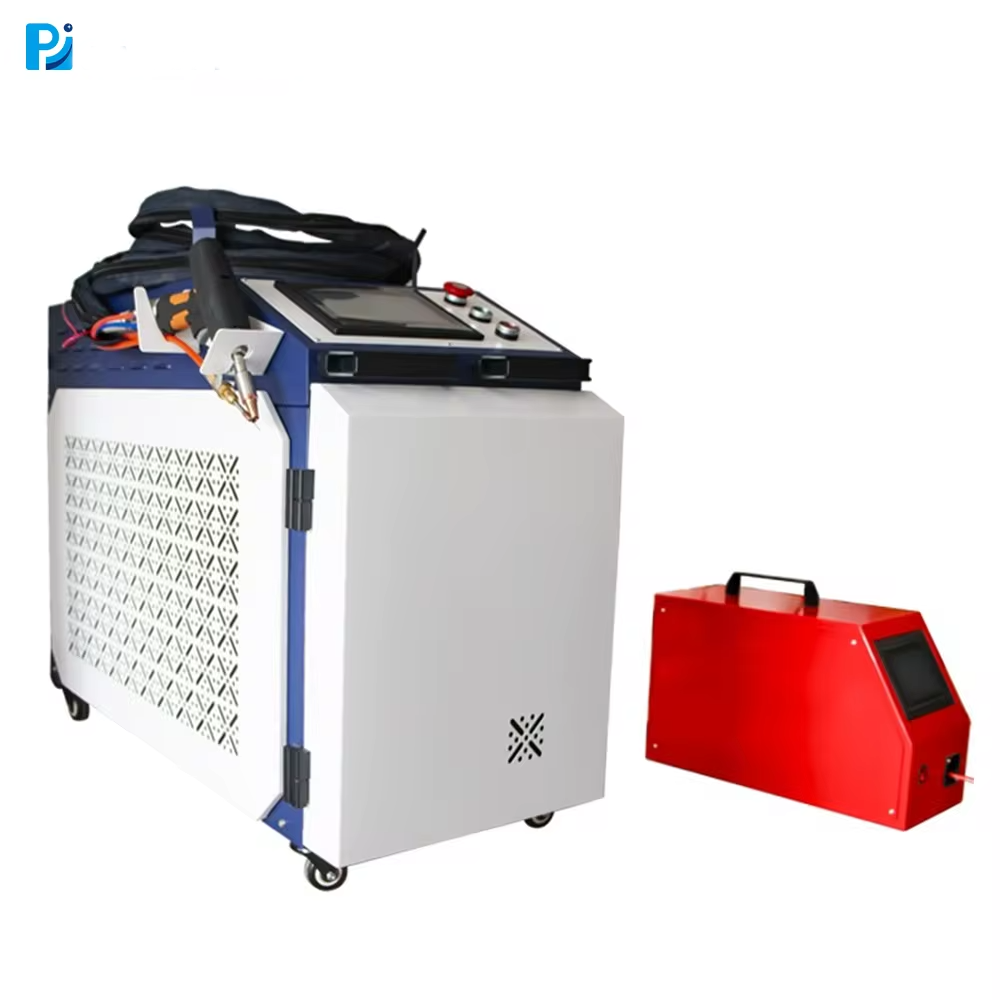

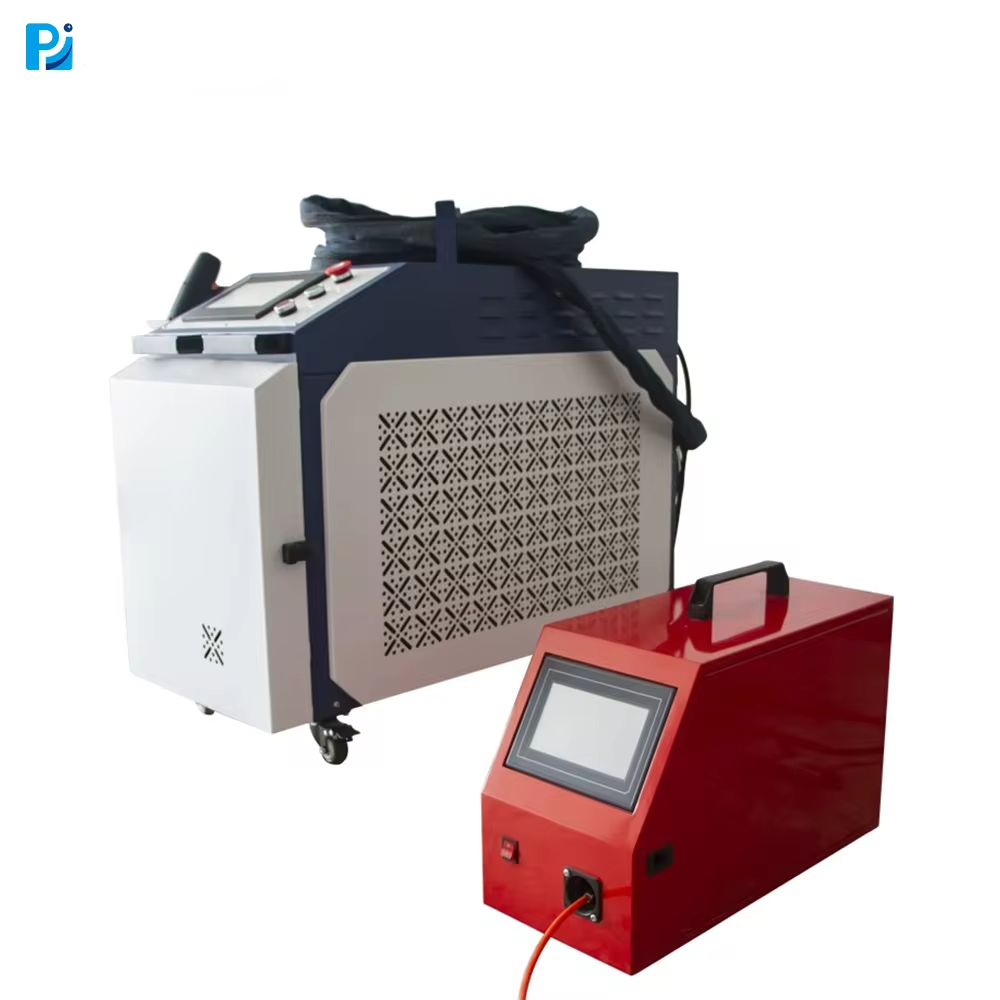

Releasing the addition is latest to Jiangpin technology impressive sorts of metalworking gear: the fiber handheld 1000w metal 1500w iron welding cutting machine 3 in 1 laser machine for Metal working. This unit is effective functions of laser welding, cutting, and engraving, all within one compact and device is portable.
Having a laser power creation of 1500W, this fiber dietary 1000w 1500w metal laser iron welding machine is cutting in 1 laser device for Metal working can perform welding and cutting maybe the thickest and toughest metals with simplicity. Its dissolvable soluble fiber is advanced permits accurate and clean cuts in just heat is minimal area alongside no distortion. This could allow it to be the metalworking tool perfect who demand accuracy and efficiency.
The fiber is dietary 1000w metal 1500w iron welding cutting machine 3 in 1 laser machine for Metal working also features an ergonomic design allows you to manage as well as make usage of. Its handheld operation enables for greater precision and freedom whenever focusing on shapes that could be designs which are complex. The apparatus also contains an control is intuitive allows for fast and easy changes of laser energy along with other settings, making this quite simple to adjust to materials are different applications.
The fiber dietary 1000w metal is 1500w iron welding cutting machine 3 in 1 laser machine for Metal working now offers top-notch engraving capabilities its cutting and welding. This permits users to include customized designs, logos, and text with their metal works, making this something is versatile range that wide of.
